At
Laycock, we do our best to keep up with the trends in the
industry and in ways to make winding easier. The results of
this commitment are now available to
you!
Laycock Systems produces a complete line of single and three
phase random wound electric motor winding heads. All Laycock
winding heads will fit on either of our 19" (48.3 cm) or 25"
(63.5 cm) length holders with quick release. All winding
heads are coated
for smoother operation and less wear and abrasion. Try this
remarkable concentric coil winder product line today!
|
|

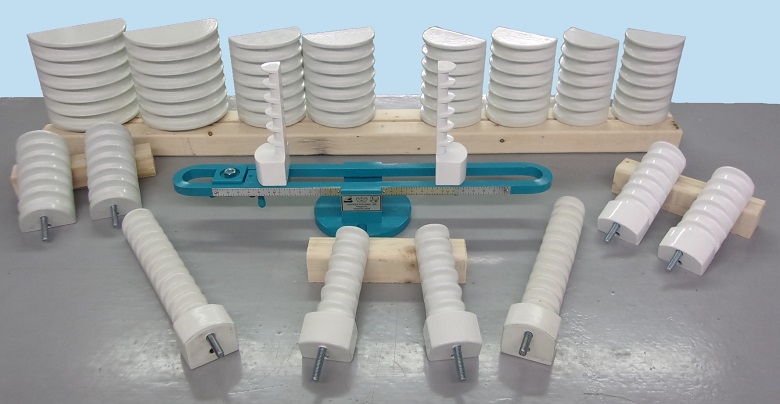

Three Phase Winding Heads
Three Phase Set with Holder
(Part Numbers LA-300, LA-300-HR-19, or
LA-300-HR-25)
| |
The Easier Way
of Laycock
- Only requires one setting
(length)
- Saves as much as one inch (25.4
mm) of wire per turn
- Coils require no taping - just
tie the leads
- Saves as much as one hour's time
in winding
- Heads fit on Laycock 19" (48.3
cm) or 25" (63.5 cm) holders
- No corners to short out
Round coils without sharp corners may
save as much as one inch (25.4 mm) of magnetic wire per
turn. Multiply this by the number of turns and you will
see how Laycock saves you money. You may also save as
much as one hour's time!
Round coils will not short
out as diamond shaped coils can so it is not necessary
to tape the end turns. Just sleeve the leads and use
phase insulation when required!
|
|

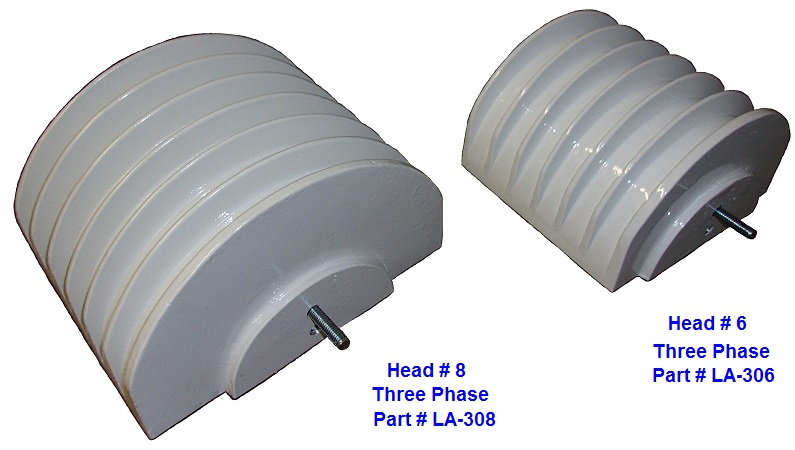

New Large Three Phase Heads
| |
With
Laycock products, you profit by our experience! These new
winding forms will add versatility to your Laycock Winding
Equipment.
Now,
with deeper and wider slots to accommodate more wire for
some of the new type motors. Slot depth is 11/16" (17.5
mm). These new sizes will wind motors up to 150 H.P. All
heads fit either 19" (48.3 cm) or 25" (63.5 cm) Laycock
holders with instant coil release.
|
|

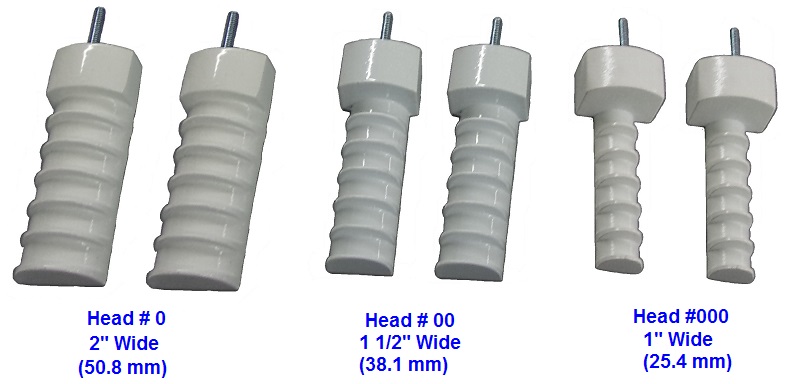

New Small Three Phase Heads 6 Slot
|
These 6 slot winding forms were developed to
wind very small or very low speed three phase motors, as
well as loom motors with short spans, small shaded pole fan
motors and coils for bi-polar fields. The slot depth has
been increased to 5/16" (7.9 mm)
As with all our wind
heads, they mount on either our 19" (48.3 cm) or 25"
(63.5 cm) Laycock holders and quick release.
|
|

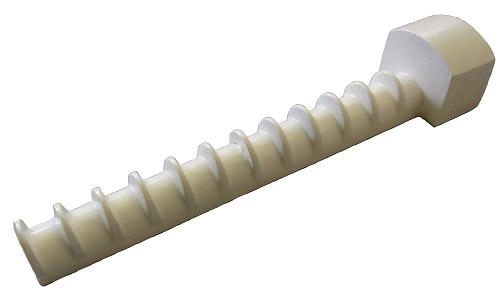

New Small Three Phase Heads 12 Slot
|
This 12
slot winding form was developed to wind very small or very
low speed three phase motors, as well as loom motors with
short spans, small shaded pole fan motors and coils for
bi-polar fields. The slot depth has been increased to 5/16"
(7.9 mm)
|
|
Combination Single and Three Phase Heads with
Holder
| |
For the
person just starting in business, this combination provides
complete winding equipment for nearly all the random wound
motors that come to a shop for repair - both single and
three phase. Both sets mount on the same Laycock holder with
quick release and will save on your initial
investment. You will save time and money as it is not
necessary to change the holder - just change heads!
Combination consists of No. 1 through No.
11 single phase and No. 1 through No. 5 three phase heads
with either 19" (48.3 cm) or 25" (63.5 cm) holder and
instant coil release.
All Laycock Heads are coated with
polyurethane for smoother operation and less wear and
abrasion. All dimensions listed are approximate.
|
|
No phone orders. P.O by fax or E-mail
only.
A 4% Credit Card processing fee will be
added to applicable orders.
|
Model # |
Description |
Price- US. Dollars |
Packing &
Handling |
Weight |
|
Domestic |
Export |
|
LA-12-300-000 |
#000 - 1" Wide head (three phase heads are 12-slot) **
Spreader bar must be used. |
$759.00 |
$10.00 |
$10.00 |
1Lbs |
|
LA-12-300-00 |
#00 - 1 1/2" wide Head (three phase heads are 12-slot) **
Spreader bar must be used. |
$781.00 |
$10.00 |
$10.00 |
1Lbs |
|
LA-300-000 |
#000 - 1"
Wide head (three phase heads are 6-slot). |
$154.00 |
$10.00 |
$10.00 |
1Lbs |
|
LA-300-00 |
#00
- 1 1/2" Wide head (three phase heads are 6-slot). |
$154.00 |
$10.00 |
$10.00 |
1Lbs |
|
LA-300-0 |
#0 - 2" Wide head. |
$160.00 |
$10.00 |
$10.00 |
1Lbs |
|
LA-301 |
#1 - 2 1/2" Wide head. |
$160.00 |
$10.00 |
$10.00 |
1Lbs |
|
LA-302 |
#2 - 3 1/4 " Wide head. |
$176.00 |
$10.00 |
$10.00 |
2Lbs |
|
LA-303 |
# 3 - 3 3/4 " Wide head. |
$187.00 |
$10.00 |
$10.00 |
2Lbs |
|
LA-304 |
# 4 - 4 1/4 " Wide head. |
$204.00 |
$10.00 |
$10.00 |
3Lbs |
|
LA-305 |
# 5 - 5 1/4 " Wide head. |
$231.00 |
$10.00 |
$10.00 |
3Lbs |
|
LA-306 |
# 6 - 6 7/8 " Wide head. |
$330.00 |
$10.00 |
$10.00 |
8Lbs |
|
LA-308 |
#8 - 8 3/8 " Wide head. |
$440.00 |
$10.00 |
$10.00 |
10Lbs |
|
LA-306-8 |
Set of #6 & #8 Three Phase Heads. |
$726.00 |
$10.00 |
$10.00 |
18Lbs |
|
LA-300 |
Set of #1 through #5 Three Phase Heads (5). |
$902.00 |
$10.00 |
$10.00 |
11Lbs |
|
LA-300-HR-19 |
Set of #1 thru #5 Three Phase Heads with Standard 19" Long
Holder & Instant Coil Release. |
$1,562.00 |
$20.00 |
$40.00 |
20Lbs |
|
LA-300-HR-25 |
Set of #1 thru #5 Three Phase Heads with Standard 25"
Long Holder & Instant Coil Release. |
$1,584.00 |
$20.00 |
$40.00 |
21Lbs |
|
LA-100-3-HR-19 |
Combination Set of #1-11
Single Phase and #1-5 Three Phase Heads with Standard 19"
Long Holder & Instant Coil Release |
$3,082.00 |
$20.00 |
$40.00 |
45Lbs |
|
LA-100-3-HR-25 |
Combination Set of #1-11 Single Phase and #1-5 Three
Phase Heads with Standard 25" Long Holder & Instant Coil
Release |
$3,104.00 |
$20.00 |
$40.00 |
46Lbs |
|
LA-SB-26 |
26" HD Holder spreader bar
without scale * use with 12 slot heads * |
$226.00 |
$10.00 |
$10.00 |
- |
